Robotino® View

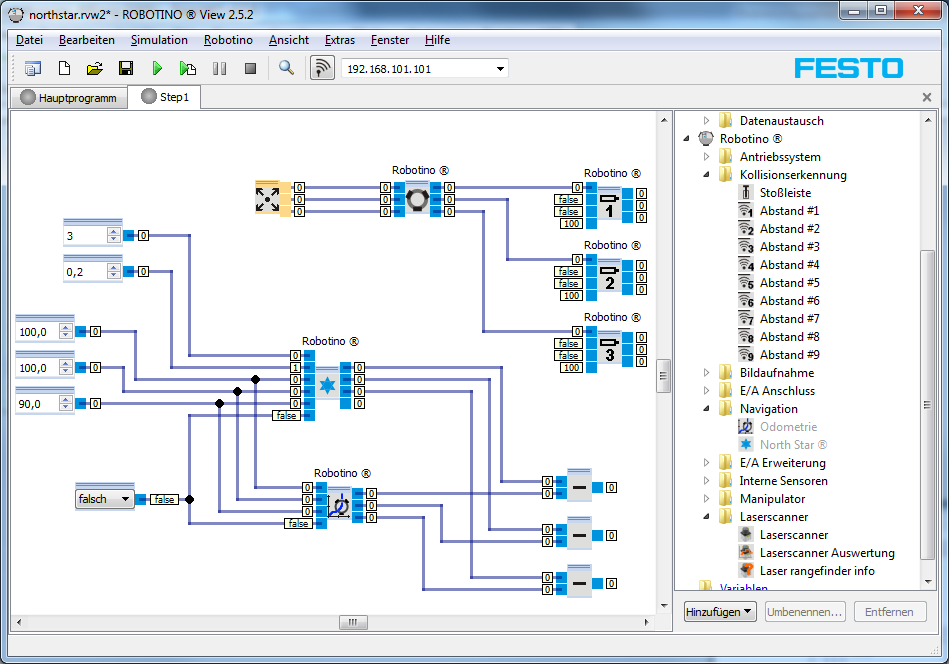

The data flow representation of a behavior in Robotino® View

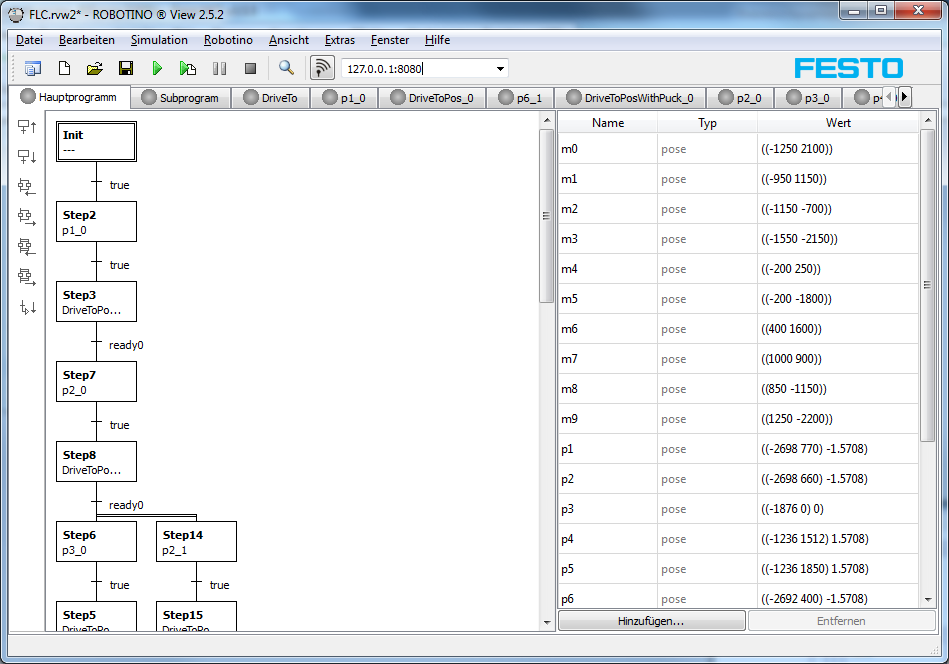

The sequential control in Robotino® View

With Robotino® View, complex behaviors can be programmed graphically. All the sensors on Robotino® are available to respond to the perceived environment. Individual behaviors can be specified in the form of a data flow graph. By means of a flow control similar to the one in the PLC world, behavior patterns can be combined and/or changed gradually.

With the current version 2, it is possible to expand Robotino® View with user defined function blocks. The function blocks are programmed in C++ and loaded in Robotino® View at run time. This opens up the full potential of programming in C++ on one hand and graphical programming of the control flow on the other hand with Robotino® View.
